NSK's various angular contact ball bearings are designed to meet these diverse requirements. Angular contact ball bearings have contact angles, so they can withstand both radial loads and large axial loads in unidirectional direction. In addition, the angular contact ball bearing load radial load, because the load contains axial components, so, are generally combined to use a number of bearings, such as 2, 3 or 4 and so on. NSK has and offers full-size angular contact ball bearings.



Vertical equipment composition views Results words views Results Results



High quality steel - Ultra-clean steel with 80% extension of bearing life

High Lubricant Technology - NSK's Lubricant Technology Extends Grease Life and Improves Bearing Performance

High grade steel ball - quiet and smooth at high speed

Superfinished raceway surfaces - special honing, minimizes noise, improves lubricant dispersibility and improves life.

Contact angle - with a contact angle of 15 degrees, 25 degrees, 30 degrees, 40 degrees of various products

Cage - with a variety of cage made of polyamide, steel and brass

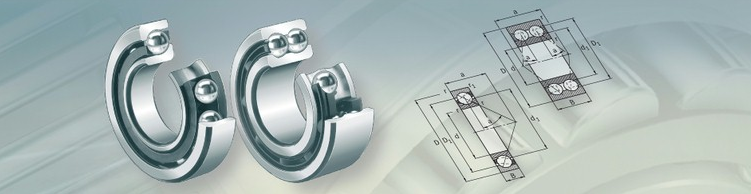

Single row angular contact ball bearings

This bearing has a contact angle, so it is suitable for bearing axial load in one direction, or synthetic load.

Structure, bear radial load after the axial separation, so the two bearings used opposite, or two or more pairs of pairs of use. Single row angular contact ball bearings, you can use the preload method to improve rigidity, therefore, suitable for high rotation accuracy of the machine spindle.

In general, the contact angle of 30 ° (code A) and 40 ° (code B) of the angular contact ball bearing cage, according to Table 1. But according to different conditions also use synthetic resin cage or polyamide molding cage. The basic load rating shown in the dimension table is based on Table 1 for the cage.

>> Table 1

Single row angular contact ball bearings



Pairs of double angular contact ball bearings

The structure of pairs of double bearings, shown in Table 2

>> Table 2

Pairs of double angular contact ball bearings



Double row angular contact ball bearings

Will be a single row angular contact ball bearing back to back double, inner ring, outer ring into one of the structure. Can withstand two directions of axial load, with torque load capacity. Can be used as a fixed end bearing. Use stamping cage.

Their cages are pressed steel

Double row angular contact ball bearings



4 point contact ball bearings

The inner ring is divided into two, with a bearing can bear two directions of axial load. Contact angle of 35 ° axial load capacity, suitable for withstand the pure axial load, or the axial load of the synthetic load. Use copper alloy car cage.

4 point contact ball bearings
